Earth Observation Satellite-05 (EOS-05)

Earth Observation Satellite-05 (EOS-05) is India’s first dedicated imaging satellite, advancing India’s Geostationary Earth Observation capabilities. Read here to learn more.

India’s successful launch of Earth Observation Satellite-05 (EOS-05) aboard the GSLV-F17 marks an important advancement in India’s space-based Earth observation capabilities.

Unlike conventional Earth-observation satellites operating in Low Earth Orbit (LEO), EOS-05 is designed to provide persistent imaging from a geosynchronous orbit, enabling continuous monitoring of large geographical areas.

The mission strengthens India’s capacity for disaster management, meteorological forecasting, environmental monitoring and strategic applications, while demonstrating the growing maturity of the Geosynchronous Satellite Launch Vehicle (GSLV).

What is the Earth Observation Satellite-05 (EOS-05) Mission?

1. Advanced Earth Observation Satellite

EOS-05, described as an “Eye in the Sky”, is equipped with advanced optical and infrared imaging payloads designed to provide frequent and wide-area imagery.

• Mass: 2,367 kg
• Designed for operation from a geosynchronous orbit
• Provides persistent observation of the Indian region.
• Its imaging capabilities can support monitoring of rapidly evolving phenomena such as cyclones, cloudbursts, flash floods and forest fires.

2. GSLV-F17

The mission was launched using GSLV-F17, the 19th operational flight of India’s Geosynchronous Satellite Launch Vehicle.

The GSLV consists of three stages:

1. Solid core, four liquid strap-on boosters
2. Liquid second stage
3. Indigenous cryogenic upper stage

The indigenous cryogenic stage is particularly important because cryogenic propulsion provides the high specific impulse required for placing heavier satellites into higher-energy orbits.

3. Sub-GTO Injection and Orbit Raising

• The launch vehicle first places EOS-05 into a Sub-Geosynchronous Transfer Orbit (Sub-GTO).
• The satellite subsequently uses its onboard Liquid Apogee Motor (LAM) through a series of orbit-raising manoeuvres to reach its designated geostationary orbital position.

Why is Geosynchronous Imaging Important?

Conventional Earth-observation satellites in LEO move rapidly around the Earth. Although they provide high-resolution imagery, a particular location can only be observed when the satellite passes overhead.

A geosynchronous imaging satellite offers a fundamentally different advantage: from approximately 35,786 km, a satellite can continuously observe a large region.

This is particularly valuable for:

• Cyclone tracking
• Cloudburst and extreme-weather monitoring
• Flash-flood assessment
• Forest-fire detection
• Flood and disaster response
• Large-scale environmental monitoring
• Agricultural and land-use observation
• Strategic surveillance

Thus, the key advantage is not merely higher resolution, but continuous temporal coverage.

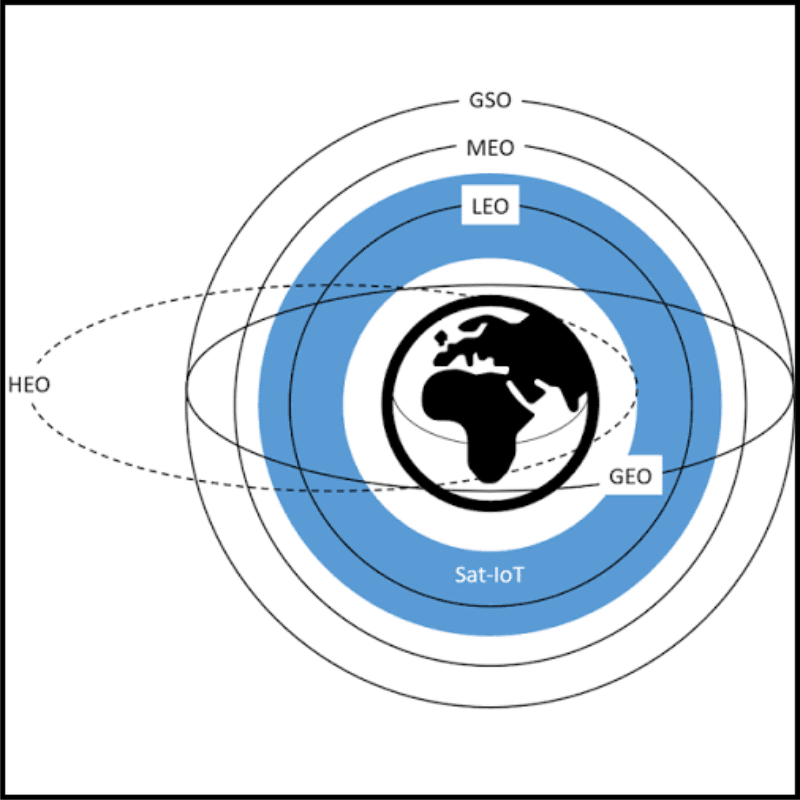

Different Satellite Orbits

Geosynchronous vs Geostationary

These terms are often confused.

Geosynchronous orbit (GSO):

• Orbital period equals Earth’s rotational period.
• The satellite may appear to move north-south or east-west relative to an observer.

Geostationary orbit (GEO):

• A special type of geosynchronous orbit.
• It must be circular, equatorial and have zero inclination.
• Therefore, the satellite appears stationary over a fixed point on Earth.

Hence, every GEO is a GSO, but every GSO is not a GEO.

LEO vs GEO Earth Observation

Therefore, LEO and GEO are complementary rather than competing architectures.

LEO is particularly useful where spatial resolution is critical, while GEO becomes highly valuable where temporal resolution and persistence are critical.

Significance for India

1. Strengthening Disaster Management

• India is highly vulnerable to cyclones, floods, landslides, forest fires and other extreme-weather events.
• Persistent satellite observations can improve detection, tracking, early warning, response, and damage assessment
• This can reduce the time available for authorities to respond to rapidly developing hazards.

2. Better Weather and Climate Monitoring

Continuous imaging can help meteorological agencies track the development and movement of weather systems.

It can contribute to:

• Improved numerical weather prediction
• Cyclone intensity and trajectory monitoring
• Cloud-system analysis
• Rainfall-related disaster warnings
• Long-term climate observation

3. Environmental Monitoring

Large-scale continuous observation can support monitoring of:

• Forest fires
• Vegetation changes
• Land degradation
• Water bodies
• Coastal ecosystems
• Agricultural conditions

4. Strategic and National-Security Applications

• Persistent observation of the Indian region can also strengthen situational awareness and strategic monitoring.
• This becomes increasingly important as space-based assets become an integral component of modern national security.

5. Strengthening Indigenous Space Technology

The mission demonstrates India’s capabilities in:

• Heavy-payload launch
• Cryogenic propulsion
• Satellite manoeuvring
• Advanced imaging
• High-altitude orbital operations

This contributes to India’s broader objective of developing an increasingly self-reliant space ecosystem.

Challenges

Despite its advantages, GEO-based Earth observation has certain limitations:

1. Lower spatial resolution: The large distance from Earth makes very high-resolution imaging more difficult compared with LEO platforms.
2. High launch-energy requirement: Placing a heavy satellite into geosynchronous orbit requires significantly greater orbital energy.
3. Expensive infrastructure: GEO missions require sophisticated launch vehicles, propulsion systems, ground stations and data-processing infrastructure.
4. Data-management challenge: Continuous imaging generates enormous quantities of data, requiring:

• High-bandwidth communication
• Cloud/ground processing
• AI-based analytics
• Secure data infrastructure

5. Orbital congestion and space debris: The geostationary belt is a strategically valuable and limited orbital resource. Increasing satellite numbers raise concerns regarding orbital congestion, collision risks and space sustainability.

Way Forward

India should pursue a multi-orbit Earth-observation architecture rather than relying on a single orbital regime.

Key priorities

• Integrate LEO, MEO and GEO observations.
• Use AI/ML for real-time interpretation of satellite imagery.
• Develop advanced infrared and hyperspectral sensors.
• Strengthen satellite-ground communication networks.
• Integrate satellite data with weather radars, drones and ground sensors.
• Expand applications through ISRO-private-sector partnerships.
• Strengthen space situational awareness and orbital-debris management.
• Improve open-data access for researchers, disaster agencies and startups while protecting sensitive information.

Conclusion

The EOS-05 mission represents more than another satellite launch. It reflects a shift towards persistent, real-time and application-oriented space-based observation.

While LEO satellites remain indispensable for high-resolution Earth imaging, geostationary observation provides a crucial advantage in monitoring rapidly changing phenomena. For a disaster-prone and geographically diverse country such as India, the integration of persistent satellite observation with AI, meteorology, ground-based systems and disaster-response mechanisms can significantly strengthen climate resilience and national preparedness.

India’s future space strategy should therefore move from merely observing Earth towards building an integrated, real-time Earth intelligence ecosystem.
